Non-contact wall thickness measurement for different glass containers.

The ESO measuring heads are designed for noncontact measurement of wall thickness on glass containers. Two models are available to accommodate different wall thicknesses, operating ranges, and measurement tasks.

Thanks to their compact dimensions, the measuring heads can be positioned close to the item and precisely at the desired measuring location.

Contact Us →
ESO-Messköpfe 7 mm und 17 mm

Two measuring heads for different measurement tasks.

The choice of measuring head depends on the item being inspected and the desired measurement position. The two variants differ, among other things, in terms of wall thickness range, working range, and permissible angle relative to the glass surface.

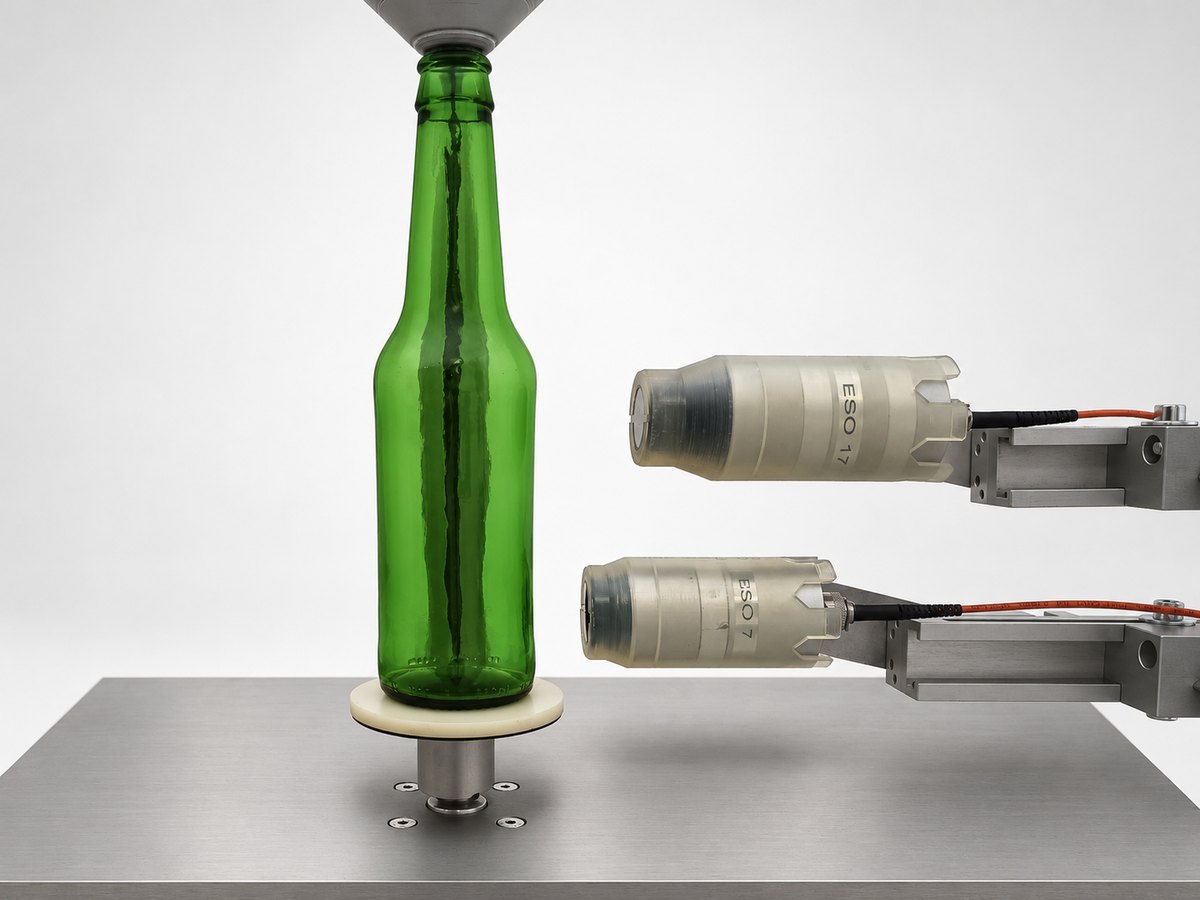

ESO 17 und ESO 7 Messköpfe an einer grünen Glasflasche auf der Rotierstation

ESO 17-mm measuring head

The ESO 17-mm measuring head is suitable for round and non-round containers, as well as for tinted and dark glass. A typical application is measuring the wall thickness of wine bottles.

Wall Thickness Measurement Rangefrom
0,4 mm
working range
40,5–77,5 mm
Measurement angle relative to the glass surface
90° ±14°
Dimensions
Ø 40 × 75,5 mm

ESO 7-mm measuring head

The ESO 7-mm measuring head is particularly well-suited for round containers and clear glass. Thanks to its measurement range, it can also be used for measurements near the bottom of containers.

Wall Thickness Measurement Range
from 0.2 mm
Working range
34–41 mm
Measurement angle relative to the glass surface
90° ±20°
Dimensions
Ø 36 × 67 mm

Which measuring head is right for your application?

Talk to us about your measurement task. We’ll work with you to determine which of the two measurement heads is best suited for it.
